 New Build - lake tour boat

Go down
AuthorMessage
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: New Build - lake tour boat   New Build - lake tour boat EmptySun Jun 25, 2017 1:37 pm

As I said in the American tour boat thread, I had seen a model for sale on ebay which I found attractive and fancied trying to build something like it. Some time ago I bought some figures to help me work out dimensions - they claim to be 1:30 or G scale but G scale is also quoted as 1:25 Shocked. Anyway, they are smaller than the figures used on Lady of Maine. Rolling Eyes Rolling Eyes

The model will only be about 30 cm by 13 cm and powered by a 140 size motor. The hull is being made from plastic card, and is just a simple flat bottomed box. Yesterday I drew some 'plans' and today I cut the bottom and deck and some pieces to support the deck. I have a prop tube and shaft which are too long but will be cut down, and I will make a rudder from brass. Once the hull is made, the interesting part starts - the superstructure.

Here is what I am aiming at

New Build - lake tour boat S-l16010

and this is today's effort - the deck is not stuck down yet.

New Build - lake tour boat Dscn0610 New Build - lake tour boat Dscn0612 New Build - lake tour boat Dscn0611

Barrie
Back to top Go down
Guest
Guest




New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyMon Jun 26, 2017 12:59 am

2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyTue Jun 27, 2017 9:08 am

A bit of a hold up - I made a mess of shortening the prop shaft so had to order a new one Embarassed, and then I made a mess of my thumb trying to take control of a rogue clematis lol! lol! lol!
...and its surprising how much you need both thumbs Shocked Shocked

Normal service will be resumed later this week - I hope Rolling Eyes

Barrie
Back to top Go down
Guest
Guest




New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyTue Jun 27, 2017 7:14 pm

Crying or Very sad Crying or Very sad Crying or Very sad Crying or Very sad take more water with it, barrie, lol.
Back to top Go down
Guest
Guest




New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyTue Jun 27, 2017 11:53 pm

Ouch  affraid
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptySun Jul 02, 2017 4:55 pm

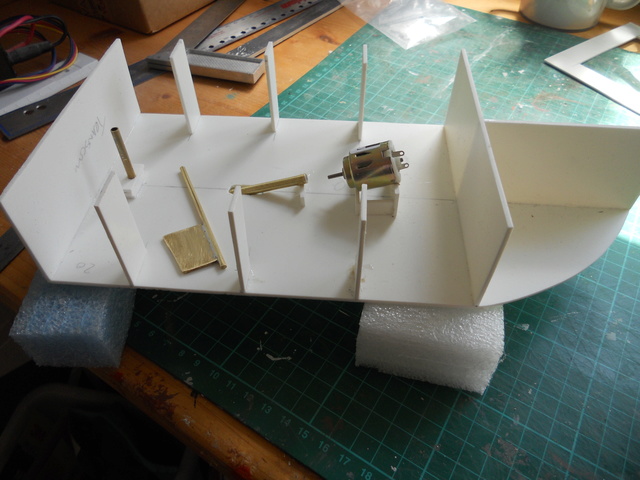

My new prop shaft arrived yesterday so this morning I managed to make a little progress - still struggling with the thumb Crying or Very sad
The propshaft is tacked in place and a support for the inboard end fitted. I've started on the mount for the motor, but it still need lining up accurately. The rudder tube is in but not fixed - I added some scrap card to give better support, and will probably add a support from the transom.
Next jobs are to finish the motor mount, permanently fix the propshaft and build a servo mount. Then I can add the deck and and sides.

Barrie

New Build - lake tour boat Dscn0614
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyMon Jul 03, 2017 5:58 pm

The prop shaft is now fixed in place with P40. I roughed up the card before applying. The motor mount is fixed in  place and a coupling made from cable insulation.I added a collet to the prop shaft so it doesn't slip.
I tried a couple of options for the battery location, but ended up as you see it. I built a servo mount which is not yet finally positioned - I need to make up a tiller arm before finalising its location. The ESC and Rx should go either side of the propshaft when I source them Rolling Eyes
Once the servo linkage is sorted I can fix the deck and sides, and get onto the interesting part - the superstructure.

Barrie

New Build - lake tour boat Dscn0615
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyTue Jul 04, 2017 1:03 pm

New Build - lake tour boat Dscn0616

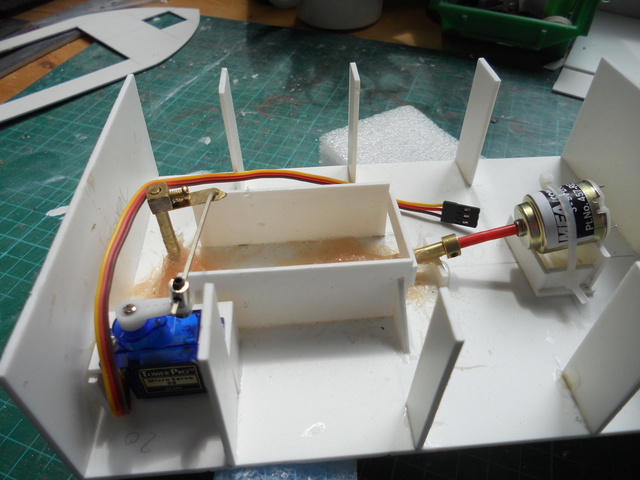

The servo has now been installed. I had to cut down the mount I had made. It is unlikely that I will be able to remove the servo as one of the screws is well hidden when the deck is on Embarassed.
Since taking the photo I have stuck down the deck. Next job is the sides, then I can see if it floats lol! lol!
. I also made a skeg from brass strip which need fitting.

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyFri Jul 07, 2017 6:05 pm

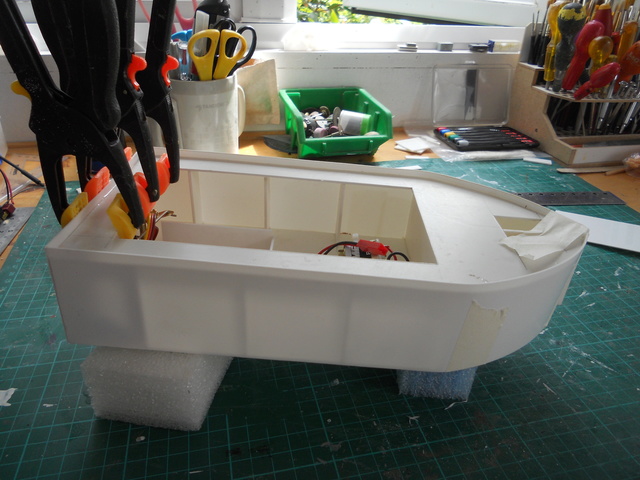

Despite it being 32C in my workshop, I have now fitted the sides to the hull. Its not the most attractive hull, or the most efficient, but the purpose of this build is the superstructure Shocked
When I had fitted the first side I realised I had made a mistake with the transom as it did not come above deck, so now it has an extra skin lol! lol!

I also fitted the skeg that I had made earlier, so I think I am ready for the test tank - the kitchen sink should suffice in this case lol!

Barrie

New Build - lake tour boat Dscn0617
Back to top Go down
Guest
Guest




New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptySat Jul 08, 2017 5:12 am

lol! 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptySat Jul 08, 2017 1:41 pm

More seasonal weather today - thank goodness, although still no rain Crying or Very sad
I didn't put it in the water  Laughing instead I filled in a few gaps and smoothed the edges. I also fitted a 'keel' made from some square section plastic. There is still some sanding of filler required at the bow. I also made a stand from some foamboard - a bit rough but I didn't have any suitable wood to hand. If the model turns out OK, I will make a better one,  The coamings are fitted to the opening ready to start on the superstructure 2thumbsup

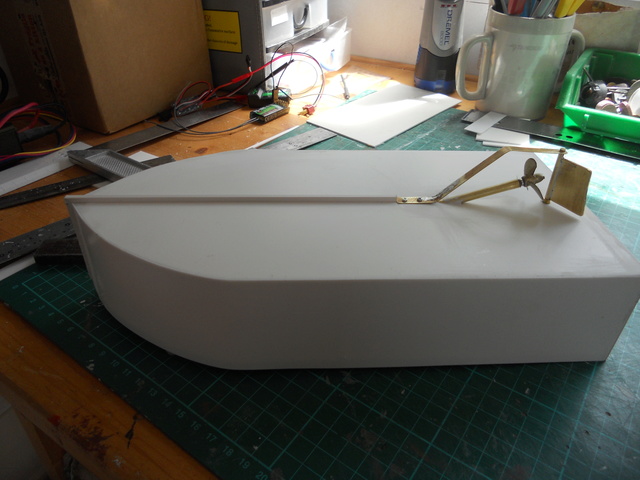

This one shows the skeg and 'keel'.

New Build - lake tour boat Dscn0618

and this the current state of the build.

New Build - lake tour boat Dscn0619

Barrie

I think that bollard may be too big lol! its really a handle to remove the hatch.
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyMon Jul 10, 2017 4:04 pm

The filler has been sanded smooth and is now ready for paint. I built a cover for the deck opening using the cut-out piece. Then I started thinking that this wasn't big enough for the deck, so have added a larger piece of 1.5 mm.
The main job was cutting out and sticking together the parts for 10 seats for the passengers. I also spent some time working out how I am going to make the remainder of the model Rolling Eyes This included deciding on the material for the railings and the roof supports. In both cases they will be plastic card - 3 mm round for the railing supports and 6 mm square for the roof supports. I have cut out notches in the new deck to take the roof supports. The railing supports will fit in holes drilled into the deck. I just need to work out how to accurately drill all the posts for the actual railings Shocked

Barrie

New Build - lake tour boat Dscn0620
Back to top Go down
Guest
Guest




New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptySat Jul 15, 2017 10:25 am

2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptySat Jul 22, 2017 1:58 pm

Well - after a break for various reasons including a weekend in my home county of Yorkshire, I have finally returned to this model Laughing Laughing
The railing uprights and roof supports have been cut and the uprights drilled for the railings. the deck has been edged, and holes drilled. Its now ready for the square roof supports to be drilled and then I can start fixing them all.
Before I do I think perhaps I should at least mark out the seat positions as access is going to get tricky lol!

Barrie

New Build - lake tour boat Dscn0621
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyMon Jul 24, 2017 8:32 pm

I started to drill the square posts today and discovered that it was not going to be possible to do so accurately enough. If you have tried to drill plastic card you will know it can be tricky as it has a tendency to melt if you are not careful. I usually use some water to cool and lubricate, but this does not work when drilling through 6mm Sad
So its back to the drawing board. I have already cut the square holes for the posts Rolling Eyes
I do have some 6mm square wood which I may be able to use, although it will take more preparation to get a good surface. At the moment I can't think of any alternative.

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyTue Jul 25, 2017 1:35 pm

Last night I ordered some 6 mm square plastic tube which I hope will solve my problem as there will only be a thin wall to drill through.
Today I started to paint the seats ready for fixing to the deck. I thought this was a suitably yucky colour for plastic seats lol!

New Build - lake tour boat Dscn0623

I have also been making the 'cabin' for the captain. This will be fixed to the deck and should be the same height as the roof Rolling Eyes I have made and glazed a back for it, but looking at the photo I'm not sure that I will fit it.

New Build - lake tour boat Dscn0622

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyFri Jul 28, 2017 7:03 pm

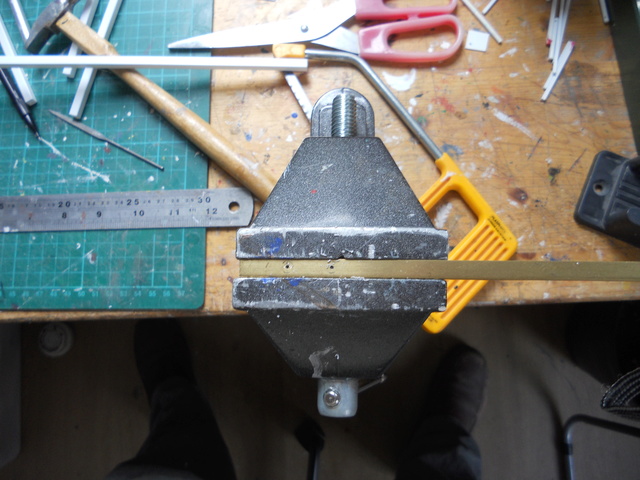

My tube arrived today and proved easy to drill using this jig made from some brass angle. I also stuck the seats to the deck.

New Build - lake tour boat Dscn0625

Before I can install the supports, I need to paint the deck. So far one coat - I'm not sure about this colour though Rolling Eyes

New Build - lake tour boat Dscn0624

I also received my ships wheel so I can finish the cabin.

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptySat Jul 29, 2017 7:36 pm

New Build - lake tour boat Dscn0626

More painting done - this is a better colour I think Rolling Eyes The colour scheme will be silver and green I have decided. I also cut the panel for the roof. This will have simulated solar cells on it. I did consider buying a real solar cell as they are quite cheap, but decided to stick with a simulation.

Barrie
Back to top Go down
Guest
Guest




New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptySun Jul 30, 2017 5:54 am

Coming along nicely Barrie.  2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyMon Jul 31, 2017 1:53 pm

I wasn't happy with my simulated solar cell, so have ordered the real one Rolling Eyes It is 12 volts 1.5 watts so could possibly run the boat, or at least charge the battery However at the moment the battry is a LiPo, so I will not try that. I could in future change to NiMh in which case I could use the solar output. In any case she will be called Solar Queen.

The roof supports and railings are now fitted, and the roof has its edging fitted. This has shown up my mistake - the cabin is too short  bounce bounce bounce - I've not decided what to do about that yet. I have made two gates for the gap at the front of the railings. I will not fix the roof until I have modified and painted the figures, and got them fixed in place.

Barrie

New Build - lake tour boat Dscn0627
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyTue Aug 01, 2017 5:39 pm

I solved the problem of the short cabin by adding another 1.5 cm and disguising the joint with some half round beading Very Happy I also fitted the two gates - they do not swing.

New Build - lake tour boat Dscn0628

I have now started work on the figures - I need at least 10 seated ones. The Captain has undergone surgery so he can steer - albeit one handed.  Laughing

Barrie
Back to top Go down
Guest
Guest




New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyWed Aug 02, 2017 1:14 am

2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyWed Aug 02, 2017 6:18 am

Thanks Damien - I'm just wishing I had designed a more attractive hull - at least one not so deep Embarassed

Barrie
Back to top Go down
Guest
Guest




New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyWed Aug 02, 2017 6:56 am

I'm sure your Granddaughter will love it as Pop built it.

2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyWed Aug 02, 2017 7:19 am

Sorry Damien - I don't have one of them, and I'm not sure that this is for the Grandson either lol!

Barrie
Back to top Go down
Guest
Guest




New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyWed Aug 02, 2017 7:51 am

Sorry my bad 2thumbsup
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyWed Aug 02, 2017 12:42 pm

No problem - it was David who was building for his fourth Granddaughter Thumbup

Barrie
Back to top Go down
Guest
Guest




New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyWed Aug 02, 2017 1:00 pm

lol! My grand daughter would love one but they're not close to suitable water only tidal rivers and lakes.
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptyFri Aug 04, 2017 12:52 pm

The passengers and crew are almost ready to board - just need a coat of matt varnish.

New Build - lake tour boat Dscn0629

Its been in the test tank and ballast added. The bottom of the hull has had one coat of red/brown.

New Build - lake tour boat Dscn0630

The upper-works have been painted ready for fixing the roof, which is waiting the arrival of my solar cell. This is purportedly coming from London, but I think its actually coming from China via London. Shocked Why can't these people be honest about the location of their products bounce bounce bounce Negative feedback on its way.

New Build - lake tour boat Dscn0631

Barrie
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptySat Aug 05, 2017 1:54 pm

he solar cell arrived today - from China via London as I suspected. bounce
The passengers have boarded, along with the crew. The roof has been painted and lettering applied - you can't see in these photos but she is called Solar Queen. The roof and solar cell are not fixed yet as I am deciding how to fix the solar cell so that I can remove it later if I want to try solar power for real. Rolling Eyes
When the hull bottom paint has hardened I will re-mask and paint the upper part which will be silver with a green stripe.

Barrie

New Build - lake tour boat Dscn0633 New Build - lake tour boat Dscn0632

New Build - lake tour boat Dscn0634
Back to top Go down
Guest
Guest




New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptySun Aug 06, 2017 1:30 pm

it's exactly as one would think of a river/lake excursion boat to look like.......very functional and lake worthy.............you've captured the essence perfectly.

lovely build and a real crowd pleaser.

excellent, and very colourful.
Back to top Go down
barriew
Captain (moderator)
Captain (moderator)



Posts : 2631
Join date : 2011-11-26
Age : 83
Location : Thaxted, Essex

New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat EmptySun Aug 06, 2017 3:10 pm

Thanks Neil - I've added a bit more colour today. This is now finished apart from some paint to touch up and then a coat of satin varnish. I coupled up the electrics toady adding a switch under the hatch in the bows as its a bit tricky to get the deck on the hull, so best done in the workshop not at the lakeside Rolling Eyes
With the solar cell, I decided to fit a lead and coiled it up under the roof where its not seen, but is available if I want to experiment with its output. I coupled up a meter and it was giciving almost 10 volts in the dull inside the workshop, but not sure how many micro amps Shocked

Barrie

New Build - lake tour boat Dscn0635 New Build - lake tour boat Dscn0636 New Build - lake tour boat Dscn0637
Back to top Go down
Sponsored content





New Build - lake tour boat Empty
PostSubject: Re: New Build - lake tour boat   New Build - lake tour boat Empty

Back to top Go down

New Build - lake tour boat
Back to top
Page 1 of 1
 Similar topics
-
» New RC boat build
» My boat build in Video form.
» THERMOPYLE boat build,1st time
» Build Foam Air Boat Beginners to Expert Won't Flip
» American Coastal Tour Master

Permissions in this forum:You cannot reply to topics in this forum
TheRcModelBoatForum.com :: Modelling Categories & Archived Build Logs :: Any Other Models-
Jump to:
